Merge Logic — Alien Token Consolidation

What is Merge

Merge is a mechanism for consolidating multiple alien tokens (representations of the same token from different source networks) into a single canon token (canonical representation) in the destination network.

Problem It Solves

When the same token (e.g., USDT) is bridged from different networks to one TVM network, different alien tokens are created:

• USDT from network A → USDT-A (derive token 1)
• USDT from network B → USDT-B (derive token 2)

Without merge, users receive different tokens that are not interchangeable. With merge, all these representations are consolidated into one USDT-canon that can be used in DeFi applications.

When Merge is Needed

Conditions for Triggering on Incoming Transfer

Condition	Description
MergeRouter deployed	Router exists for derive token
MergePool specified in Router	pool != address(0)
Canon token enabled	canonToken.enabled == true
Amount after conversion > 0	canon_amount > 0 after decimals

When Merge Does NOT Happen

• MergeRouter not deployed → user receives derive token
• MergePool not specified in Router (pool == 0) → user receives derive token
• Canon token disabled (enabled == false) → fallback to derive token
• Amount too small (canon_amount == 0 after decimals) → fallback to derive token

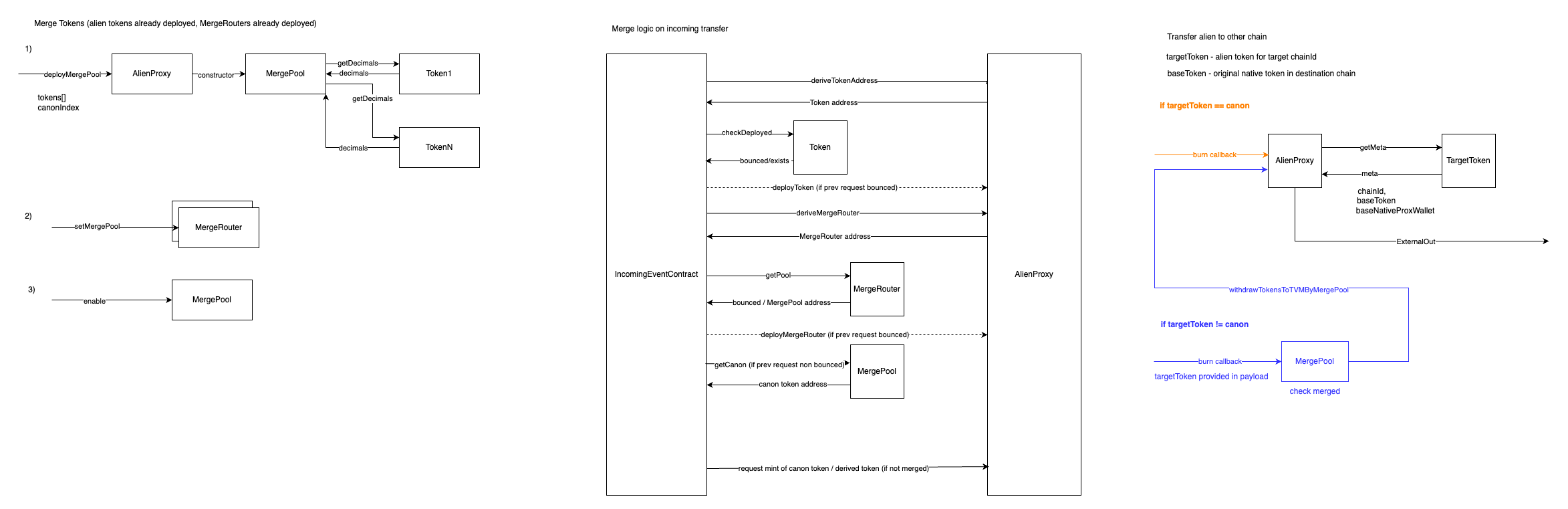

Scenario 1: Merge on Incoming Transfer

Participants

Participant	Role
IncomingEventContract	Event contract processing incoming transfer
AlienProxy	Proxy contract for alien tokens
MergeRouter	Links derive token to MergePool
MergePool	Stores derive → canon mapping, performs conversion
Token (derive)	Alien token created for specific source network
Token (canon)	Canonical token representation

Step-by-step Description

1. Getting derive token address — Event contract requests token address from Proxy
2. Checking token deployment — if token not deployed (bounce), deployed via Proxy
3. Requesting MergeRouter — Event contract requests router address for this token
4. Requesting MergePool — Router returns pool address (or 0 if not configured)
5. Requesting canon token — if pool is set, canon token is requested
6. Decimals conversion and finalization — canon_amount calculated with decimals conversion
7. Token minting — Proxy mints target_token in amount target_amount

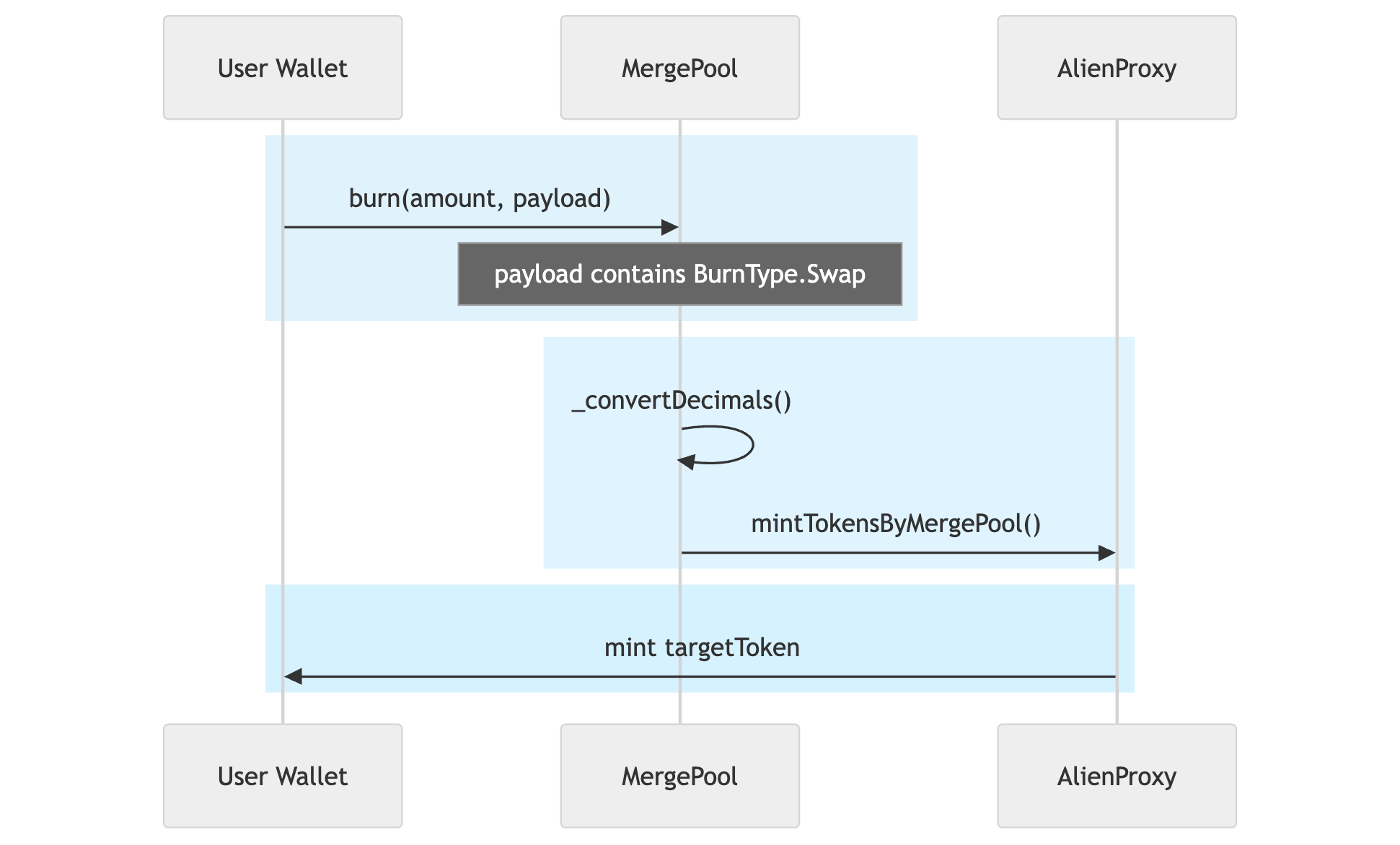

Scenario 2: Swap Between Tokens in MergePool

User can exchange one token from MergePool to another at 1:1 rate (with decimals conversion).

Sequence

Example Payload for Swap

For building payload and sending transaction, the following objects are needed:

Object	Description
cellEncoder	Helper contract for encoding payload in TVM Cell format. Stateless, used only for encode/decode operations
userTokenWallet	User's Jetton Wallet for source token (derive or other token in pool)

// cellEncoder — instance of CellEncoder contract
// CellEncoder address can be obtained from configuration or deploy your own
const cellEncoder = new ever.Contract(CellEncoderAbi, cellEncoderAddress);

// userTokenWallet — User's Jetton Wallet for token they want to exchange
// Address obtained via Jetton Minter: jettonMinter.getWalletAddress(userAddress)
const userTokenWallet = new ever.Contract(JettonWalletAbi, userJettonWalletAddress);

// Building payload for swap
const burnPayload = await cellEncoder.methods
  .encodeMergePoolBurnJettonSwapPayload({
    _targetToken: targetTokenAddress,  // Target token Jetton Minter address
    _remainingGasTo: userAddress,      // Where to return remaining gas
  })
  .call();

// Burning tokens with sending to MergePool
await userTokenWallet.methods.burn({
  amount: amount,
  remainingGasTo: userAddress,
  callbackTo: mergePool.address,
  payload: burnPayload.value0,
}).send({
  from: userAddress,
  amount: toNano(2),
});

Scenario 3: Withdraw via MergePool

User burns canon token via MergePool for withdrawal to another network.

Withdraw Variants

Destination Network	Method
EVM	withdrawTokensToEvmByMergePool
SVM (Solana)	withdrawTokensToSvmByMergePool
TVM	withdrawTokensToTvmByMergePool

Sequence

Example Payload for Withdraw to TVM

For withdraw, user burns canon token and specifies derive token to determine destination network:

Object	Description
cellEncoder	Helper contract for encoding payload in TVM Cell format
userCanonWallet	User's Jetton Wallet for canon token (canonical representation)

// cellEncoder — instance of CellEncoder contract
const cellEncoder = new ever.Contract(CellEncoderAbi, cellEncoderAddress);

// userCanonWallet — User's Jetton Wallet for CANON token
// This is canonical representation wallet, not derive token
// Address: canonJettonMinter.getWalletAddress(userAddress)
const userCanonWallet = new ever.Contract(JettonWalletAbi, userCanonJettonWalletAddress);

// Building payload for withdraw to TVM network
const burnPayload = await cellEncoder.methods
  .encodeMergePoolBurnJettonWithdrawPayloadTvm({
    _targetToken: deriveTokenAddress,  // Derive Jetton Minter address — determines destination network
    _recipient: recipientAddress,       // Recipient address in destination network
    _expectedGas: 0,                    // Expected gas (0 = default)
    _payload: '',                       // Additional payload (optional)
    _remainingGasTo: senderAddress,     // Where to return remaining gas
  })
  .call();

// Burning canon tokens with sending to MergePool
await userCanonWallet.methods.burn({
  amount: amount,
  remainingGasTo: senderAddress,
  callbackTo: mergePool.address,
  payload: burnPayload.value0,
}).send({
  from: senderAddress,
  amount: toNano(10),  // More gas for cross-chain operation
});

Technical Details

Data Structures

IMergePool.Token:

struct Token {
    uint8 decimals;  // token decimals
    bool enabled;    // is token enabled in pool
}

IMergePool.BurnType:

enum BurnType { Withdraw, Swap }

Decimals Conversion Algorithm

When swapping or merging between tokens with different decimals, amount conversion is performed:

Three scenarios:

Scenario	Condition	Formula	Example
Decimals equal	from_decimals == to_decimals	result = amount	18 → 18: 1000 → 1000
Decreasing precision	from_decimals > to_decimals	result = amount / 10^(from - to)	18 → 6: divide by 10^12
Increasing precision	from_decimals < to_decimals	result = amount * 10^(to - from)	6 → 18: multiply by 10^12

Loss on Precision Decrease

When converting from token with higher decimals to token with lower decimals, lower digits may be lost. For example:

• Source amount: 1_000_000_000_001 (18 decimals)
• Target token: 6 decimals
• Result: 1_000_000_000_001 / 10^12 = 1 (lower 12 digits lost)

If conversion result equals 0, operation falls back to derive token (on merge) or is rejected (on swap).

Key Functions

Function	Purpose
deployMergePool	Deploy new MergePool
deployMergeRouter	Deploy MergeRouter
onAcceptTokensBurn	Processing token burning
mintTokensByMergePool	Minting via MergePool
receiveMergePoolCanon	Receiving canon on incoming

Errors and Edge Cases

Error Codes

Code	Name	Cause
2903	TOKEN_NOT_EXISTS	Token not added to MergePool
2904	TOKEN_IS_CANON	Attempt to remove canon token
2905	TOKEN_ALREADY_EXISTS	Token already in pool
2907	TOKEN_NOT_ENABLED	Token disabled
2908	TOKEN_DECIMALS_IS_ZERO	Attempt to enable token before getting decimals
2709	WRONG_MERGE_POOL_NONCE	Call from unauthorized pool
2906	MERGE_POOL_IS_ZERO_ADDRESS	Zero pool address in Router

Edge Cases

Case 1: Amount too small

• Situation: amount = 1, from_decimals = 18, to_decimals = 6
• Result: canon_amount = 1 / 10^12 = 0
• Behavior: Fallback to derive token

Case 2: MergeRouter deployed but pool not set

• Result: User receives derive token
• Behavior: Normal, not an error

Case 3: Canon token disabled during transfer

• Result: User receives derive token
• Behavior: Fallback, no data loss

Case 4: Daily limit exceeded on withdraw

• Result: Tokens minted back to user
• Behavior: OutgoingLimitReached event emitted
