Limits

What are Limits

Limits are a bridge protection mechanism against large-scale attacks and exploits. They restrict daily transfer volume for each token separately.

Purpose:

• Protection against drainage attacks (mass fund withdrawal on hack)
• Limiting potential damage from exploits
• Time for responding to anomalous activity

Where Applied:

• ProxyMultiVaultAlienJetton_V3 contracts (alien tokens)
• ProxyMultiVaultNativeJetton_V3 contracts (native tokens)

Limit Types

The system supports two types of daily limits for each token:

Type	Description	Application
Incoming	Limit on token volume entering the network	Deposits from other networks to TVM
Outgoing	Limit on token volume leaving the network	Withdrawals from TVM to other networks

Features

• Limits are set per specific token, not globally
• Each limit is optional — may not be set (null)
• If limit is not set — check is skipped, transfer proceeds without restrictions
• Limits are independent of user address — this is total daily volume for token

Data Structure

DailyLimits

struct DailyLimits {
    optional(uint128) incomingLimit;      // Incoming limit (null = no limit)
    uint128 dailyIncomingVolume;          // Current daily incoming volume

    optional(uint128) outgoingLimit;      // Outgoing limit (null = no limit)
    uint128 dailyOutgoingVolume;          // Current daily outgoing volume

    uint32 dayStartTimestamp;             // Current "day" start timestamp
}

Limit Check Mechanism

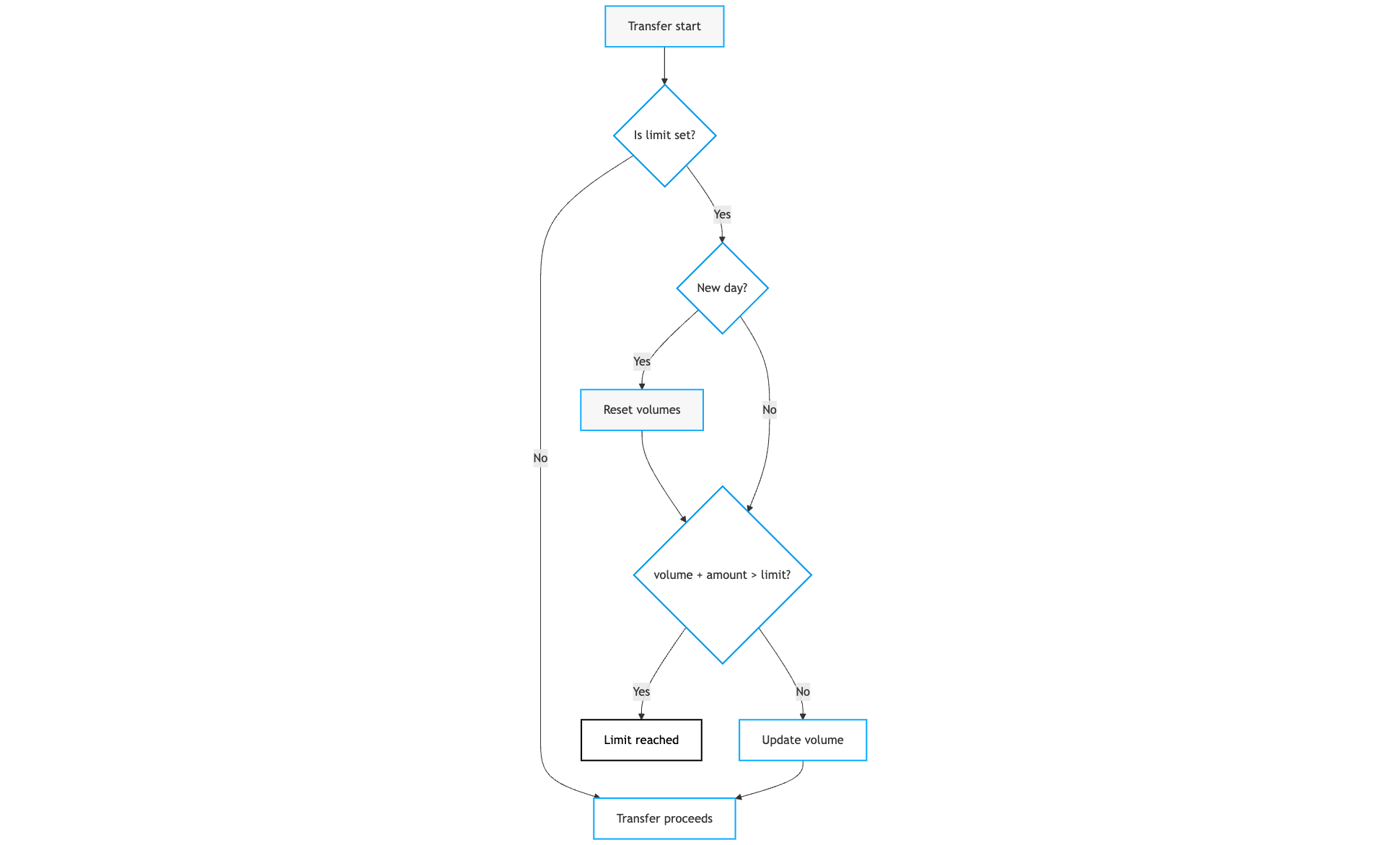

Check Algorithm

Day Definition

Day is determined by dividing block.timestamp by 86400 (seconds per day).

• Day resets at 00:00 UTC
• On day change, volumes are reset
• dayStartTimestamp is updated

When Limit is Checked

Direction	Check Moment
Incoming (deposit)	After event relay confirmation
Outgoing (withdraw)	When receiving tokens for burn/transfer

Check Formula

• Incoming: dailyIncomingVolume + amount > incomingLimit → LimitReached
• Outgoing: dailyOutgoingVolume + amount > outgoingLimit → LimitReached

Important

Check is > (strictly greater), not >=. If limit = 100 and current volume = 0, then transfer for 100 will pass (100 > 100 = false).

Scenarios When Limit is Reached

Outgoing — LimitReached

When outgoing limit is exceeded:

1. Tokens are returned to sender
2. OutgoingLimitReached(token) event is emitted
3. Transfer is not created

Incoming — LimitReached

When incoming limit is exceeded:

1. Event contract transitions to LimitReached status (code 5)
2. limitApprover address is set
3. LimitReached(approver) event is emitted
4. Transfer is delayed until approver decision

Actions on LimitReached (incoming)

LimitApprover can perform one of three actions:

Action	Function	Result
Approve	approveLimit()	Transfer executes, tokens minted to recipient
Cancel	cancel()	Tokens returned to source network
Reject	rejectLimit()	Event rejected, funds remain in source network

Retry Mechanism

User or initializer can call retry() for another transfer attempt (e.g., after limit reset on new day).

Limit Recovery

Limit automatically resets at 00:00 UTC the next day. Manual reset is not provided — only limit value change via setTokenDailyLimits().

Limit Management

Setting Limits

setTokenDailyLimits(_token, _incomingLimit, _outgoingLimit)

Parameters:

• _token — token address
• _incomingLimit — incoming limit (null = no limit)
• _outgoingLimit — outgoing limit (null = no limit)

Access rights: Contract owner only

Setting LimitApprover

setLimitApprover(approverAddress)

Access rights: Contract owner only

Reading Limits

• getDailyLimits(token) — returns DailyLimits structure for token
• getLimitApprover() — returns current approver address

Default Limits

By default, limits are not set (null). This means unlimited transfers until administrator explicitly sets limits.

API/Contract Reference

Proxy Contracts (Alien and Native)

Function	Access	Description
setTokenDailyLimits()	owner	Set/change token limits
getDailyLimits()	public	Get current limits and volumes
setLimitApprover()	owner	Set approver address
getLimitApprover()	public	Get approver address

Event Contracts

Function	Access	Description
approveLimit()	limitApprover	Approve transfer on LimitReached
cancel()	limitApprover	Cancel and return funds
rejectLimit()	limitApprover	Reject transfer
retry()	recipient/initializer	Retry transfer attempt

Events

Event	When Emitted
OutgoingLimitReached(address token)	When outgoing limit is exceeded
LimitReached(address approver)	When incoming limit is exceeded

Errors and Edge Cases

Error Codes

Code	Constant	Description
2335	SENDER_IS_NOT_LIMIT_APPROVER	Caller is not limit approver
2324	WRONG_STATUS	Invalid status for operation

Edge Cases

Situation	Behavior
Limit = 0	Any transfer > 0 will exceed limit
Limit = null	No restrictions
First transfer of day	Volume resets, then amount is added
Transfer exactly equals limit	Will pass (check is >, not >=)
limitApprover = zero address	approveLimit() will fail

Important Notes

1. Partial execution is NOT supported — transfer either passes completely or is rejected
2. Limits are checked AFTER relay confirmation for incoming transfers
3. Limits are checked BEFORE event creation for outgoing transfers
4. On outgoing LimitReached, tokens are returned instantly, no manual intervention required
