Tracking a Transfer

Prerequisites

Before tracking a transfer, you need to send it. See Sending a Transfer to get the Transfer ID.

Transfer ID

Technical Details

Transfer ID is the transaction hash of the event on the Proxy contract.

┌─────────────────────────────────────────────────────────────────┐
│                      Proxy Contract                             │
│                                                                 │
│  1. Receives tokens via transferNotification()                  │
│  2. Calls _emitTvmEvent() or _deployEvmEvent()                  │
│  3. Emits TvmTvmNative or TvmTvmAlien event                     │
│  4. Transaction hash of this event = TRANSFER ID               │
└─────────────────────────────────────────────────────────────────┘

Location in Blockchain

Transaction (on Proxy contract) ← Transaction Hash = TRANSFER ID
├── In Message (incoming tokens)
├── Out Messages
│   ├── Internal Messages (internal transfers)
│   └── External Out Message ← EVENT (TvmTvmNative/TvmTvmAlien)
└── Account (updated state)

Event Types

Event	TokenType	Description
`TvmTvmNative`	Native	Native token transfer (lock → mint)
`TvmTvmAlien`	Alien	Alien token transfer (burn → unlock)

Transfer Statuses

Two Status Levels

The system has two status levels:

Level	Where Stored	Purpose
TransferStatus	Bridge Aggregator API	Aggregated status for UI/integrations
Event Contract Status	On-chain (Event contract)	Detailed event verification state

Relationship: Bridge Aggregator API aggregates on-chain Event contract statuses into a simplified TransferStatus:

Event Contract Status                    →    TransferStatus (API)
─────────────────────────────────────────────────────────────────────
Initializing, Pending, Verified          →    Pending
Confirmed, LiquidityProvided             →    Completed
Rejected, Cancelled                      →    Failed

TransferStatus (API level)

Used in Bridge Aggregator API responses (/v2/transfers/status, /v2/transfers/search).

Status	Code	Description
`Pending`	1	Event created, awaiting confirmation in destination network
`Completed`	2	Transfer fully completed (tokens delivered)
`Failed`	3	Transfer rejected by relays

Event Contract Status (on-chain level)

Detailed Event contract statuses in the blockchain. Used to understand the verification stage of the event.

Status	Code	Description	→ TransferStatus
`Initializing`	0	Event contract deployed	Pending
`Pending`	1	Awaiting verification	Pending
`Confirmed`	2	Confirmed, proxy called, tokens delivered	Completed
`Rejected`	3	Rejected	Failed
`Cancelled`	4	Cancelled by user	Failed
`LimitReached`	5	Daily limit exceeded, requires liquidity	Pending
`LiquidityRequested`	6	Liquidity request created	Pending
`LiquidityProvided`	7	Liquidity provided, tokens delivered	Completed
`Verified`	8	Merkle proof verified, awaiting token deploy	Pending

Trustless transition: Pending → Verified → Confirmed

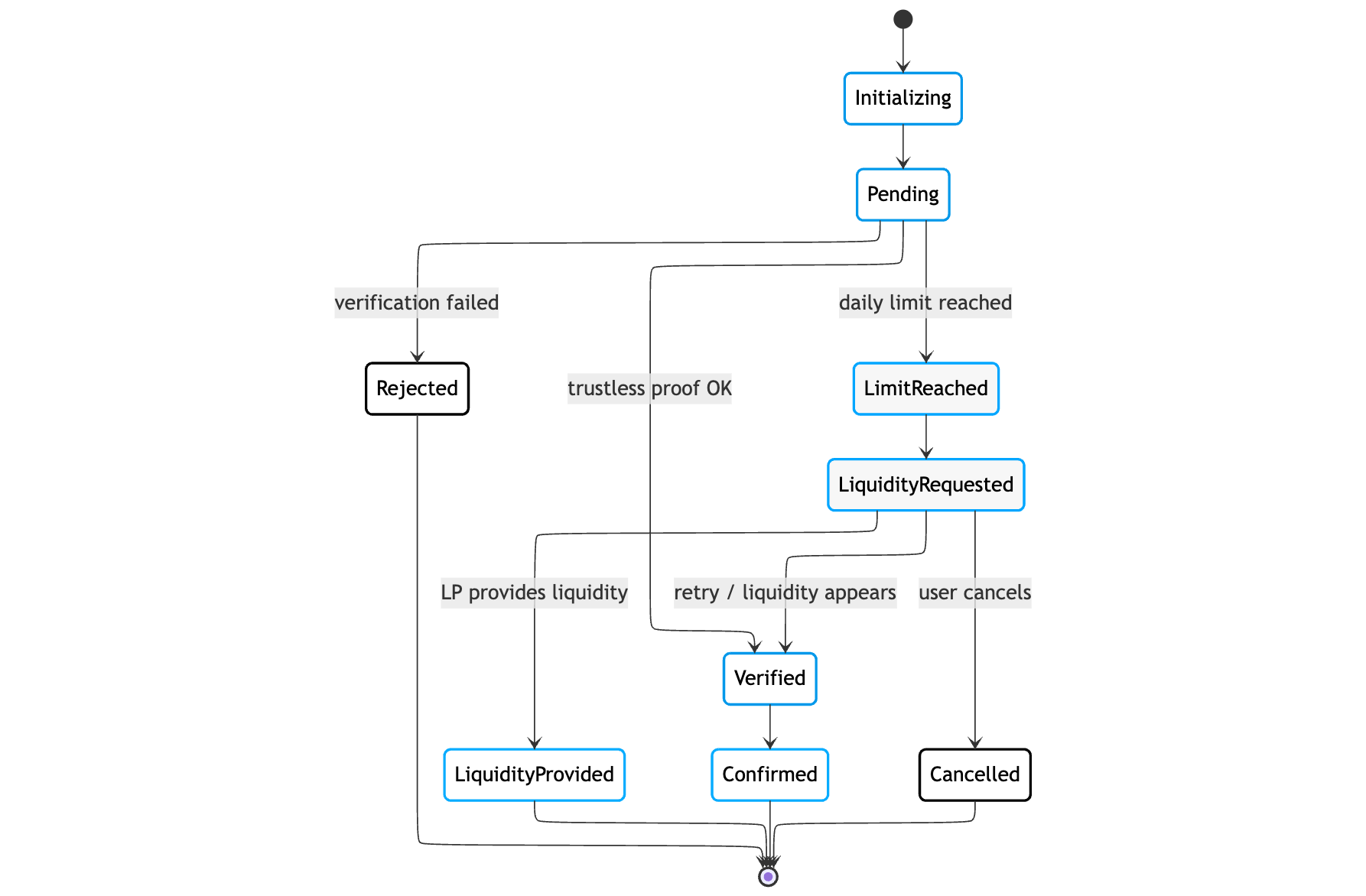

Status Transition Diagram

Getting Status by Transfer ID

API Endpoint

POST https://tetra-history-api.chainconnect.com/v2/transfers/status
Content-Type: application/json

Test Environment

For testing, use https://history-api-test.chainconnect.com/v2/transfers/status

Request Parameters

Important

According to the OpenAPI specification, the field is called outgoingTransactionHash (not outgoingMessageHash)

Parameter	Type	Required	Description
`outgoingTransactionHash`	string	✅	Transfer ID (hex, 64 characters)
`dappChainId`	number	✅	Chain ID of source network (TON = -239, Tycho = 2000)
`timestampCreatedFrom`	number	❌	Unix timestamp for filtering (optional)

Request Example (TvmTvm)

bash

curl -X POST 'https://tetra-history-api.chainconnect.com/v2/transfers/status' \
  -H 'Content-Type: application/json' \
  -d '{
    "tvmTvm": {
      "outgoingTransactionHash": "abc123def456...",
      "dappChainId": -239,
      "timestampCreatedFrom": null
    }
  }'

Response Example

json

{
  "transfer": {
    "tvmTvm": {
      "transferStatus": "Pending",
      "timestampCreatedAt": 1767972717,
      "outgoing": {
        "tokenType": "Native",
        "contractAddress": "aaaa...1111",
        "chainId": -239,
        "userAddress": "0:3333...cccc",
        "tokenAddress": "0:1111...aaaa",
        "proxyAddress": "0:6666...ffff",
        "volumeExec": "0.1000",
        "volumeUsdtExec": "0",
        "feeVolumeExec": "0",
        "messageHash": "abc123def456...",
        "transactionHash": "def789abc012..."
      },
      "incoming": {
        "tokenType": null,
        "contractAddress": null,
        "chainId": 2000,
        "userAddress": "0:2222...bbbb",
        "tokenAddress": null,
        "proxyAddress": null,
        "volumeExec": null,
        "volumeUsdtExec": null,
        "feeVolumeExec": null,
        "messageHash": null,
        "transactionHash": null
      }
    }
  },
  "notInstantTransfer": null,
  "proofPayload": {
    "txBlockProof": "te6ccgECCg...",
    "txProof": "te6ccgEBBw...",
    "messageHash": "abc123def456...",
    "outMessageIndex": 0,
    "event": {
      "tokenType": "Native",
      "chainId": 2000,
      "token": "0:1111...aaaa",
      "amount": "99000",
      "recipient": "0:2222...bbbb",
      "value": "150000000",
      "expectedGas": "0",
      "remainingGasTo": "0:3333...cccc",
      "sender": "0:3333...cccc",
      "payload": "te6ccgEBAQEAAgAAAA==",
      "nativeProxyWallet": "0:9999...2222",
      "name": "Tether USD",
      "symbol": "USD₮",
      "decimals": 6
    },
    "feeAmount": "1000"
  }
}

Response Field Descriptions

`transfer.tvmTvm` — transfer data

Field	Type	Description
`transferStatus`	string	Status: `"Pending"`, `"Completed"`, `"Failed"`
`timestampCreatedAt`	number	Unix timestamp of transfer creation

`outgoing` / `incoming` — transfer side data

Field	Type	Description
`tokenType`	string \| null	`"Native"` or `"Alien"`
`contractAddress`	string \| null	Event contract address (hex without `0:`)
`chainId`	number	Network Chain ID
`userAddress`	string	User address (sender/recipient)
`tokenAddress`	string \| null	Token address in this network
`proxyAddress`	string \| null	Proxy contract address
`volumeExec`	string \| null	Amount in human-readable format
`volumeUsdtExec`	string \| null	Amount in USDT equivalent
`feeVolumeExec`	string \| null	Fee charged
`messageHash`	string \| null	Event message hash
`transactionHash`	string \| null	Transaction hash (Transfer ID for outgoing)

`proofPayload` — data for non-credit transfers

Field	Type	Description
`txBlockProof`	string	Block proof (BOC base64)
`txProof`	string	Transaction Merkle proof (BOC base64)
`messageHash`	string	Event message hash
`outMessageIndex`	number	Index of outgoing message in transaction
`event`	object	Event data (see below)
`feeAmount`	string \| null	Fee in nano-units

`proofPayload.event` — event data

Field	Type	Description
`tokenType`	string	`"Native"` or `"Alien"`
`chainId`	number	Destination network Chain ID
`token`	string	Token address
`amount`	string	Amount in nano-units
`recipient`	string	Recipient address
`value`	string	Attached value (gas)
`expectedGas`	string	Expected gas
`remainingGasTo`	string	Address for gas return
`sender`	string	Sender address
`payload`	string	Additional payload (BOC base64)
`name`	string	Token name
`symbol`	string	Token symbol
`decimals`	number	Number of decimals

`notInstantTransfer` — liquidity request data

Populated when the transfer requires liquidity (LimitReached → LiquidityRequested status).

Field	Type	Description
`liquidityRequestAddress`	string	Liquidity request contract address
`status`	string	Request status
`amount`	string	Requested amount

Response Interpretation

Field	Value	Action
`transferStatus: "Pending"`	Waiting	Continue polling
`transferStatus: "Completed"`	Completed	Success!
`transferStatus: "Failed"`	Error	Handle error
`proofPayload != null`	Proof ready	Can deploy event (non-credit)
`incoming.transactionHash != null`	Second part executed	Transfer almost completed

Transfer History

API Endpoint

POST https://tetra-history-api.chainconnect.com/v2/transfers/search
Content-Type: application/json

Request Parameters

Parameter	Type	Required	Description
`userAddresses`	string[]	❌	Filter by user addresses (max 7)
`transferKinds`	string[]	❌	Transfer type: `["TvmToTvm"]`
`statuses`	string[]	❌	Filter by statuses: `["Pending", "Completed", "Failed"]`
`fromTvmChainId`	number	❌	Source network Chain ID
`toTvmChainId`	number	❌	Destination network Chain ID
`createdAtGe`	number	❌	Unix timestamp >= (from date)
`createdAtLe`	number	❌	Unix timestamp <= (to date)
`ordering`	string	❌	Sorting: `"CreatedAtAscending"` or `"CreatedAtDescending"`
`limit`	number	✅	Record limit (max count in response)
`offset`	number	✅	Offset (for pagination)
`isNeedTotalCount`	boolean	✅	Whether to return total transfer count

Request Example

bash

curl -X POST 'https://tetra-history-api.chainconnect.com/v2/transfers/search' \
  -H 'Content-Type: application/json' \
  -d '{
    "userAddresses": ["0:3333...cccc"],
    "transferKinds": ["TvmToTvm"],
    "statuses": ["Pending", "Completed"],
    "fromTvmChainId": -239,
    "toTvmChainId": 2000,
    "ordering": "CreatedAtDescending",
    "limit": 10,
    "offset": 0,
    "isNeedTotalCount": true
  }'

Response Example

json

{
  "transfers": [
    {
      "tvmTvm": {
        "transferStatus": "Completed",
        "timestampCreatedAt": 1767972717,
        "outgoing": {
          "tokenType": "Native",
          "contractAddress": "aaaa...1111",
          "chainId": -239,
          "userAddress": "0:3333...cccc",
          "tokenAddress": "0:1111...aaaa",
          "proxyAddress": "0:6666...ffff",
          "volumeExec": "1.0000",
          "transactionHash": "abc123..."
        },
        "incoming": {
          "tokenType": "Alien",
          "contractAddress": "bbbb...2222",
          "chainId": 2000,
          "userAddress": "0:2222...bbbb",
          "tokenAddress": "0:4444...dddd",
          "proxyAddress": "0:7777...0000",
          "volumeExec": "0.9990",
          "transactionHash": "def456..."
        }
      }
    }
  ],
  "totalCount": 42
}

Transfer ID for each transfer: transfers[i].tvmTvm.outgoing.transactionHash

Tracking Algorithm

┌─────────────────────────────────────────────────────────────────────────┐
│  1. GET TRANSFER ID                                                     │
│     After sending tokens to the Proxy contract, save the transaction    │
│     hash of that transaction — this is the Transfer ID                  │
└─────────────────────────────────────────────────────────────────────────┘
                                    │
                                    ▼
┌─────────────────────────────────────────────────────────────────────────┐
│  2. REQUEST STATUS                                                      │
│     POST /v2/transfers/status with Transfer ID and Chain ID             │
└─────────────────────────────────────────────────────────────────────────┘
                                    │
                                    ▼
┌─────────────────────────────────────────────────────────────────────────┐
│  3. CHECK transferStatus                                                │
│                                                                         │
│     "Pending"   → Transfer in progress, retry request in 5-10 sec       │
│     "Completed" → Success! Tokens delivered to recipient                │
│     "Failed"    → Error, transfer rejected                              │
└─────────────────────────────────────────────────────────────────────────┘
                                    │
                                    ▼
┌─────────────────────────────────────────────────────────────────────────┐
│  4. FOR COMPLETED TRANSFER                                              │
│     incoming.transactionHash — hash of token delivery transaction       │
│     incoming.volumeExec — received amount (after fees)                  │
└─────────────────────────────────────────────────────────────────────────┘

What to Check in Response

Field	Meaning
`transferStatus: "Pending"`	Transfer in progress — retry request
`transferStatus: "Completed"`	Transfer completed — tokens delivered
`transferStatus: "Failed"`	Transfer rejected — handle error
`incoming.transactionHash != null`	Delivery transaction executed
`proofPayload != null`	Merkle proof ready (for non-credit transfers)

Credit vs Non-credit Transfers

Type	Description	User Actions
Credit	Relays automatically deploy event and deliver tokens	Only track status
Non-credit	User deploys event contract themselves	Wait for `proofPayload`, deploy event

For non-credit transfers:

Wait for proofPayload to appear in response
Use proofPayload.txBlockProof and proofPayload.txProof to deploy Event contract in destination network
After deploying Event contract, the transfer will complete automatically

Example: TypeScript polling

typescript

async function waitForTransferCompletion(
  transferId: string,
  chainId: number,
  maxAttempts = 60,
  initialDelayMs = 5000
): Promise<TransferStatusResponse> {
  let delay = initialDelayMs;

  for (let attempt = 1; attempt <= maxAttempts; attempt++) {
    const response = await fetch('https://tetra-history-api.chainconnect.com/v2/transfers/status', {
      method: 'POST',
      headers: { 'Content-Type': 'application/json' },
      body: JSON.stringify({
        tvmTvm: {
          outgoingTransactionHash: transferId,
          dappChainId: chainId,
        },
      }),
    });

    const status = await response.json();

    if (status.transfer.tvmTvm?.transferStatus === 'Completed') {
      console.log(`Transfer completed after ${attempt} attempts`);
      return status;
    }

    if (status.transfer.tvmTvm?.transferStatus === 'Failed') {
      throw new Error('Transfer failed');
    }

    console.log(`Attempt ${attempt}: status = ${status.transfer.tvmTvm?.transferStatus}`);
    await new Promise(resolve => setTimeout(resolve, delay));
    delay = Math.min(delay * 1.2, 30000); // Max 30 seconds
  }

  throw new Error('Transfer timeout');
}

// Usage
const transferId = 'abc123def456...';  // Transfer ID from Step 3 of sending a transfer
const result = await waitForTransferCompletion(transferId, -239);
console.log('Transfer completed:', result.transfer.tvmTvm?.incoming);

Getting Status from Contract (on-chain)

In addition to Bridge Aggregator API, transfer status can be obtained directly from the Event contract in the blockchain. This is useful for:

Verifying API data
Working without dependency on centralized API
Getting detailed on-chain status

Event Contract Address

Event contract address can be obtained from API response:

transfer.tvmTvm.outgoing.contractAddress — hex address without 0: prefix

Reading Status from Contract

typescript

import { TonClient, Address } from '@ton/ton';

// ABI for getDetails method of Event contract
const EVENT_CONTRACT_ABI = {
  getDetails: {
    name: 'getDetails',
    inputs: [],
    outputs: [
      { name: 'status', type: 'uint8' },
      { name: 'sender', type: 'address' },
      { name: 'recipient', type: 'address' },
      { name: 'amount', type: 'uint128' },
      // ... other fields
    ],
  },
};

// Mapping numeric statuses to strings
const EVENT_STATUS = {
  0: 'Initializing',
  1: 'Pending',
  2: 'Confirmed',
  3: 'Rejected',
  4: 'Cancelled',
  5: 'LimitReached',
  6: 'LiquidityRequested',
  7: 'LiquidityProvided',
  8: 'Verified',
} as const;

async function getEventContractStatus(
  client: TonClient,
  eventContractAddress: string
): Promise<{ status: string; statusCode: number }> {
  const address = Address.parse(`0:${eventContractAddress}`);

  // Call contract get-method
  const result = await client.runMethod(address, 'getDetails');

  // Parse result
  const statusCode = result.stack.readNumber();
  const status = EVENT_STATUS[statusCode as keyof typeof EVENT_STATUS] || 'Unknown';

  return { status, statusCode };
}

// Usage
const client = new TonClient({
  endpoint: 'https://toncenter.com/api/v2/jsonRPC',
});

// contractAddress from API response (without 0:)
const eventContractAddress = 'aaaa...1111';
const { status, statusCode } = await getEventContractStatus(client, eventContractAddress);

console.log(`Event status: ${status} (code: ${statusCode})`);

Full Event Contract Data

To get all event data, use the getDetails method:

typescript

interface EventDetails {
  status: number;
  sender: string;
  recipient: string;
  amount: bigint;
  token: string;
  chainId: number;
  // ... other fields depend on event type
}

async function getFullEventDetails(
  client: TonClient,
  eventContractAddress: string
): Promise<EventDetails> {
  const address = Address.parse(`0:${eventContractAddress}`);
  const result = await client.runMethod(address, 'getDetails');

  return {
    status: result.stack.readNumber(),
    sender: result.stack.readAddress().toString(),
    recipient: result.stack.readAddress().toString(),
    amount: result.stack.readBigNumber(),
    token: result.stack.readAddress().toString(),
    chainId: result.stack.readNumber(),
  };
}

Important

The getDetails response structure may differ for different Event contract versions (Native vs Alien). Check the contract ABI before parsing.

Tracking a Transfer ​

Transfer ID ​

Technical Details ​

Location in Blockchain ​

Event Types ​

Transfer Statuses ​

Two Status Levels ​

TransferStatus (API level) ​

Event Contract Status (on-chain level) ​

Status Transition Diagram ​

Getting Status by Transfer ID ​

API Endpoint ​

Request Parameters ​

Request Example (TvmTvm) ​

Response Example ​

Response Field Descriptions ​

transfer.tvmTvm — transfer data ​

outgoing / incoming — transfer side data ​

proofPayload — data for non-credit transfers ​

proofPayload.event — event data ​

notInstantTransfer — liquidity request data ​

Response Interpretation ​

Transfer History ​

API Endpoint ​

Request Parameters ​

Request Example ​

Response Example ​

Tracking Algorithm ​

What to Check in Response ​

Credit vs Non-credit Transfers ​

Example: TypeScript polling ​

Getting Status from Contract (on-chain) ​

Event Contract Address ​

Reading Status from Contract ​

Full Event Contract Data ​

Tracking a Transfer

Transfer ID

Technical Details

Location in Blockchain

Event Types

Transfer Statuses

Two Status Levels

TransferStatus (API level)

Event Contract Status (on-chain level)

Status Transition Diagram

Getting Status by Transfer ID

API Endpoint

Request Parameters

Request Example (TvmTvm)

Response Example

Response Field Descriptions

`transfer.tvmTvm` — transfer data

`outgoing` / `incoming` — transfer side data

`proofPayload` — data for non-credit transfers

`proofPayload.event` — event data

`notInstantTransfer` — liquidity request data

Response Interpretation

Transfer History

API Endpoint

Request Parameters

Request Example

Response Example

Tracking Algorithm

What to Check in Response

Credit vs Non-credit Transfers

Example: TypeScript polling

Getting Status from Contract (on-chain)

Event Contract Address

Reading Status from Contract

Full Event Contract Data
